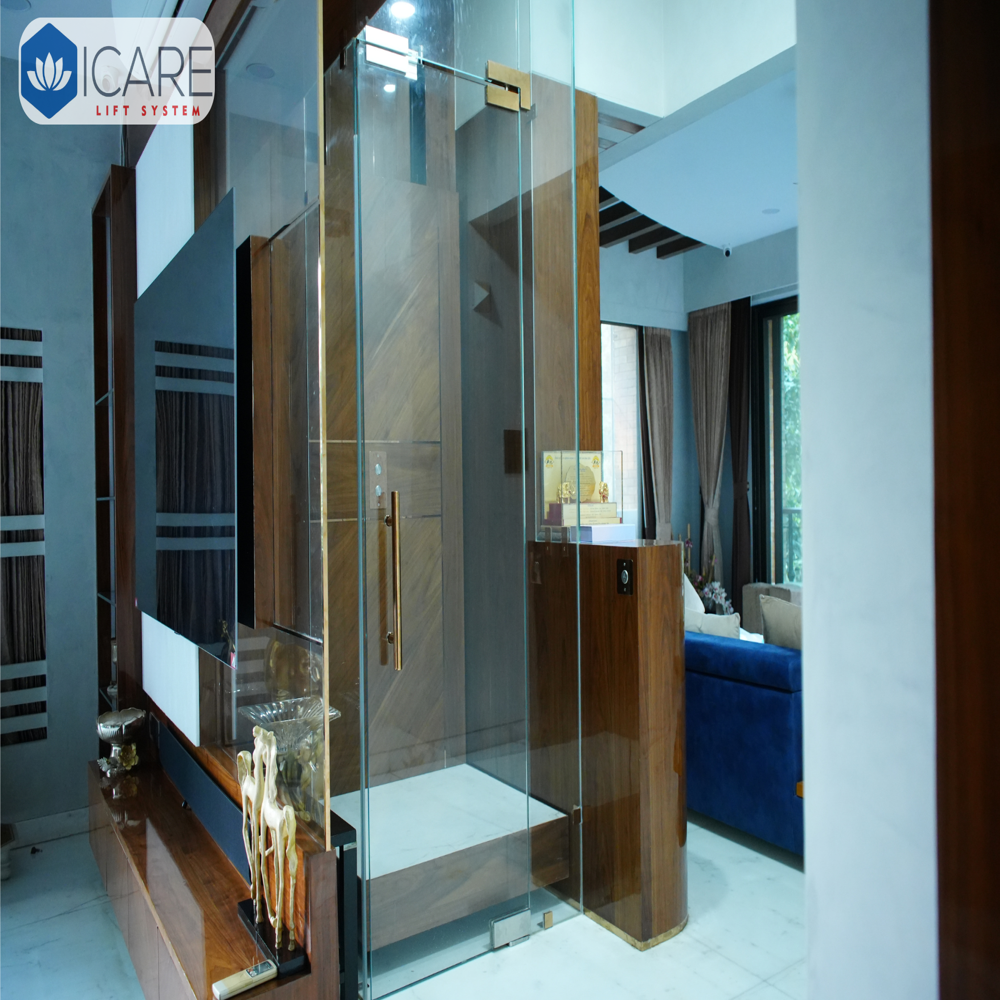

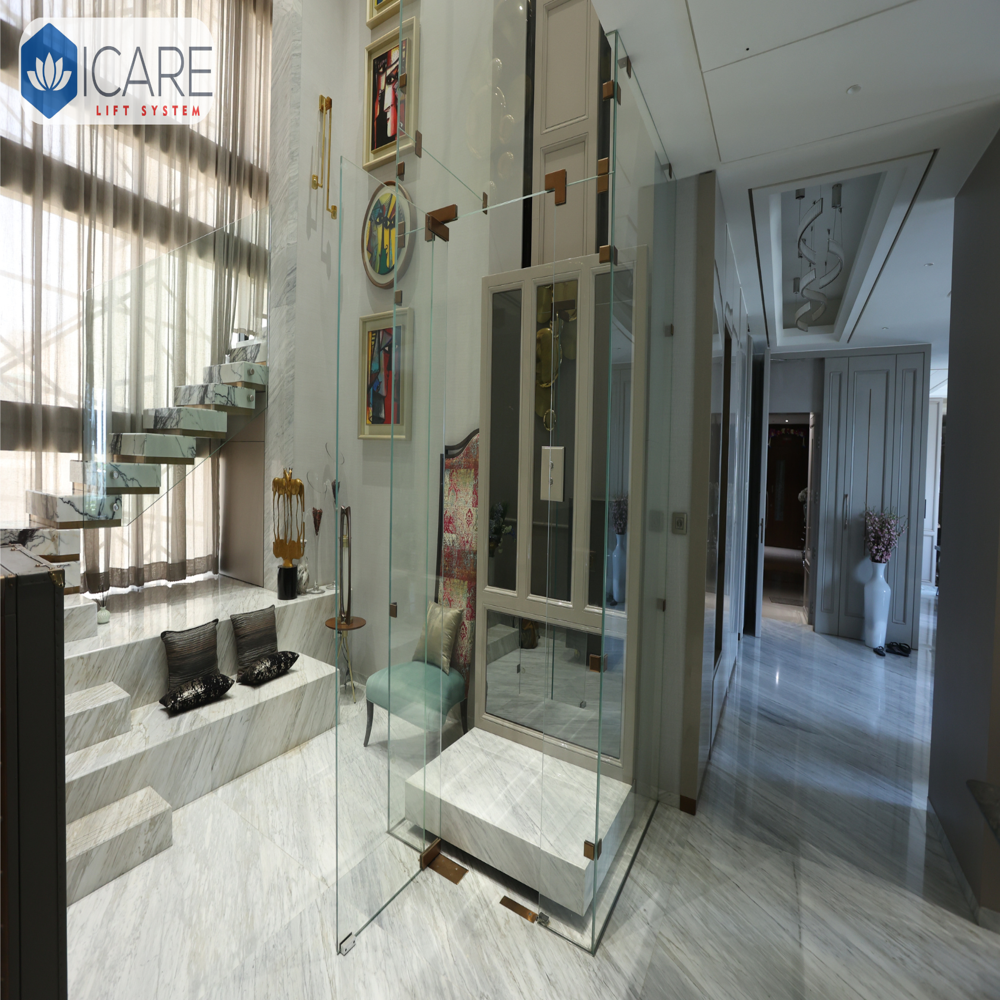

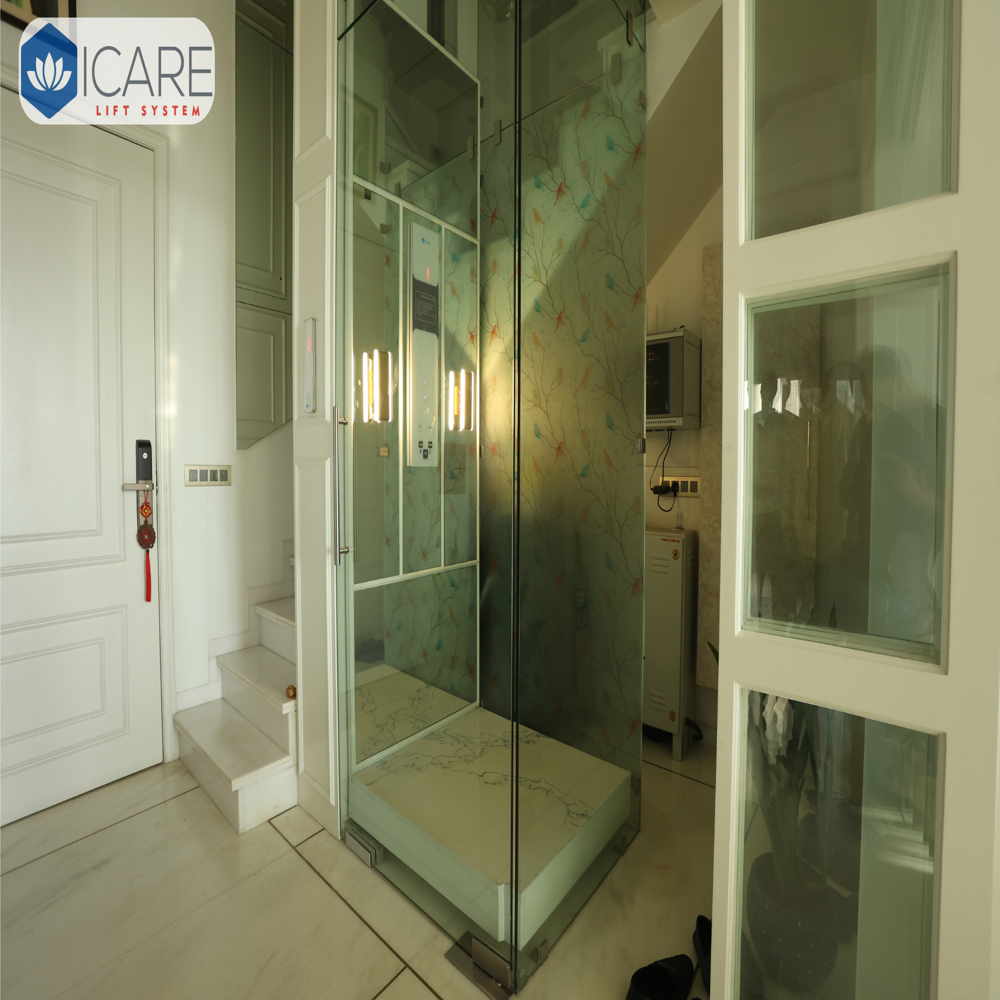

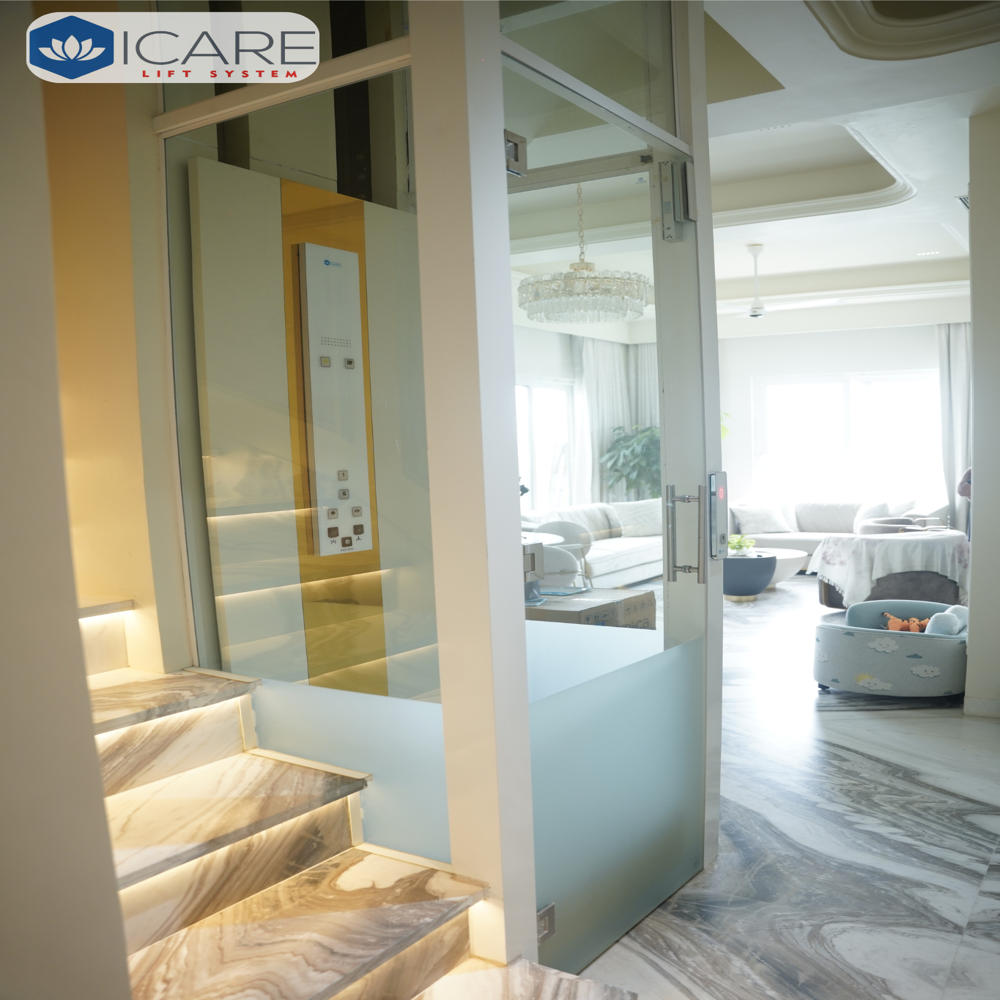

Compact Platform Home Lift

Get a Price/Quote

MOQ : 1 Unit

Compact Platform Home Lift Specification

Inclination
0 (vertical lift)

Type
Compact Platform Home Lift

Hoist Way Size
1500 mm x 1200 mm

Usage
Indoor & Outdoor / Residential use

Load Capacity
250 kg

Voltage
220 V

Noise Level
<55 dB

Door Opening Size
800 mm

Car Dimension
1100 mm x 900 mm

Pit Depth
100 mm

Machine Room Size
No dedicated machine room required

Overhead Height
2600 mm

Material
Aluminum alloy frame, stainless steel panel

Drive Type
Screw Drive

Power Supply
1.5 kW

Speed
0.15 m/s

Max. Lifting Height
12 m

Max. Lifting Weight
250 kg

Mechanism Type
Hydraulic or screw type

Working Temperature
-10C to +40C

Control Device
Microprocessor control

Safety Device
Emergency stop, door interlock, overload protection, safety sensor

Capacity
250 kg

Drive Mechanism
Self-contained linear actuator system

Power Backup
Optional battery backup available

Entrance
Single or opposite entrance available

Compliance
ISO/CE certified

Finish
Powder coated or anodized options

Application
Wheelchair or elderly transport within multi-storey home

Rated Frequency
50/60 Hz

Platform Surface
Non-slip platform

Installation
Simple installation, can be installed in one day

Travel Distance
Up to 12 meters

Operation
Push button control with illuminated call stations

Lighting
LED car lighting

Weight
Approximately 450 kg (machine)

Compact Platform Home Lift Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Units Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About Compact Platform Home Lift

The Compact Platform Home Lift is a highly in-demand solution, celebrated for its impeccable design and favorable reviews. It is decorated with advanced features such as push-button controls, LED car lighting, and a famed self-contained linear actuator system for smooth operation. Ideal for wheelchair users or elderly family members, the lift offers value through seamless transport between floors, supporting a 250 kg capacity and travel up to 12 meters. With ISO/CE certification, robust safety devices, non-slip platform, and optional battery backup, this lift is a standout in residential mobility innovation.

Versatile Applications & Enhanced Features

The Compact Platform Home Lift is not just for homes-it is equally suited for indoor and outdoor installations in private residences, duplexes, or small offices. Its versatile mechanism supports both the elderly and individuals with mobility challenges. Extra features such as illuminated call stations, non-slip platform, and microprocessor control guarantee convenient, safe, and accessible transport. Its powder-coated, anodized, or stainless steel finish options further adapt to varied settings and decor needs.

Comprehensive Packaging, Swift Delivery & Global Reach

Each Compact Platform Home Lift is carefully packaged to ensure safety during transit, employing reliable protective materials. Customers are informed once the product is ready, and delivery is typically handed over within a day after installation. Our main export markets include Asia, Middle East, and Africa. With a wide distribution network, buyers can expect prompt service and full product support as soon as the lift is delivered and operational.

FAQ's of Compact Platform Home Lift:

Q: How long does it take to install the Compact Platform Home Lift?

A: The installation process is streamlined, allowing the Compact Platform Home Lift to be fully installed and operational within just one day.

Q: What are the key safety features included with this lift?

A: Safety devices include an emergency stop, door interlock, overload protection, safety sensor, non-slip platform, and optional battery backup, all conforming to stringent ISO/CE standards.

Q: Where can the Compact Platform Home Lift be installed?

A: This versatile lift is suitable for multi-storey homes and can be installed both indoors and outdoors, requiring no dedicated machine room, which makes it ideal for varied residential settings.

Q: What are the power requirements for the home lift?

A: The lift operates on a 220V power supply, with a power consumption of 1.5 kW, and offers optional battery backup for uninterrupted function during power outages.

Q: What is the maximum load capacity, and who can use the lift?

A: With a maximum load capacity of 250 kg, the lift is designed for wheelchair access and is perfect for elderly or mobility-challenged individuals, as well as general residential use.

Q: How does the lift ensure quiet and smooth operation?

A: The advanced screw drive mechanism, combined with microprocessor controls, keeps noise levels below 55 dB and ensures smooth, reliable movement every time.
