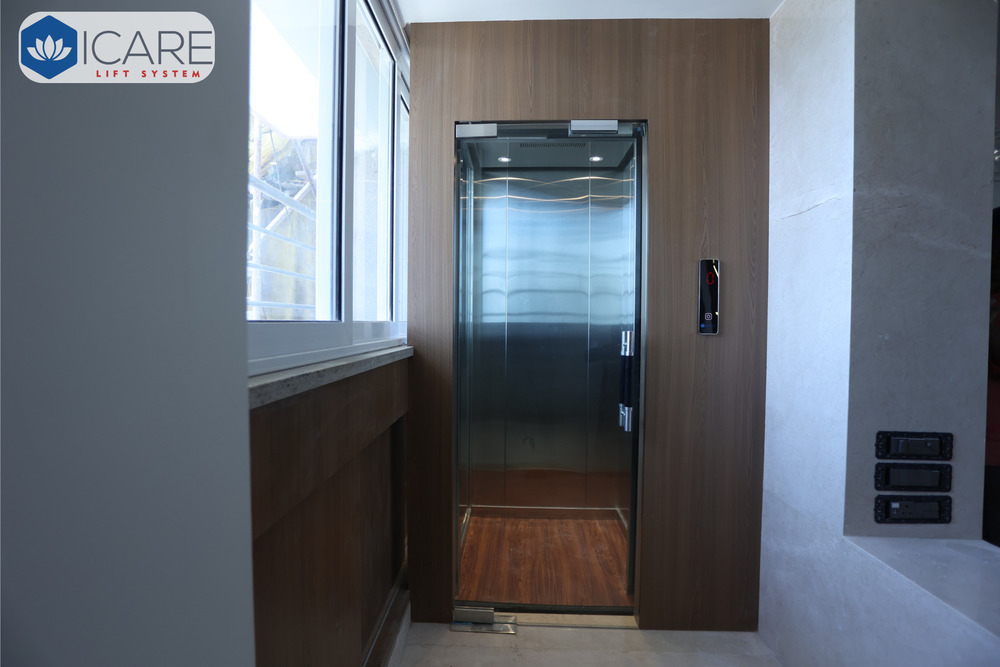

Manual Passenger Elevator

Get a Price/Quote

MOQ : 1 Unit

Manual Passenger Elevator Specification

Hoist Way Size
Customizable

Machine Room Size
Standard / Machine Room Less

Pit Depth
1500 mm (minimum)

Load Capacity
320 to 1600 kg

Voltage
220V/380V

Door Opening Size
700 mm to 1100 mm

Overhead Height
3200 mm (minimum)

Noise Level
< 65 dB

Car Dimension
Customizable as per shaft size

Usage
Residential / Commercial Buildings

Type
Manual Passenger Elevator

Material
Stainless Steel / Mild Steel

Drive Type
Geared / Gearless

Power Supply
Electric

Speed
0.65 m/s to 1.5 m/s

Max. Lifting Height
Up to 60 meters

Max. Lifting Weight
1600 kg

Mechanism Type
Traction / Hydraulic

Working Temperature
-10C to +50C

Control Device
Microprocessor Based Control Panel

Safety Device
Overload Sensor, Safety Gear, Emergency Alarm

Capacity
4-20 Persons

Emergency Features
Automatic Rescue Device (optional)

Floor Indicator
Digital LED Display

Suspension
Steel Wire Rope

Operation Mode
Manual Door Operation

Door Structure
Single Speed / Double Speed Manual

Installation Service
Available

Landing Door Type
Manual Swing / Collapsible

Lighting
LED Cabin Light

Structured Compliance
Complies with IS 14665 standards

Communication
Intercom system (optional)

Interior Finish
Hairline Finish / Mirror Finish

Manual Passenger Elevator Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Units Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About Manual Passenger Elevator

Introducing our Top-tier Manual Passenger Elevator, an affordable yet inestimable solution for residential and commercial buildings. This elevator, crafted from impeccable quality stainless or mild steel, features a steel wire rope suspension system and modern digital LED floor indicators. Choose between hairline or mirror-finish interiors with manual swing or collapsible doors for an elevated journey. Benefit from a microprocessor-based control panel, advanced safety devices, and an optional rescue device. Towering with reliability, it supports up to 1600 kg and complies with IS 14665 standards for impeccable safety and performance.

Versatile Material and Usage Across Applications

Our Manual Passenger Elevator boasts robust material options such as stainless steel and mild steel sheets, ensuring exceptional durability wherever it's installed. Designed for both residential and commercial buildings, the elevator's customizable dimensions cater to various shaft sizes. Whether for multi-storey homes, office complexes, or public access spaces, its versatility addresses a wide area of application, providing users with a dependable, stylish, and efficient vertical mobility solution.

Domestic Market, Port Supply, and Certifications

We proudly hand over every elevator after thorough inspection, serving the domestic Indian market from our primary FOB port. Each quotation is tailored to client specifications, reflecting exact requirements. Every unit strictly complies with IS 14665 standards and is supported by necessary certifications, guaranteeing end-to-end safety and quality. From manufacturing and supply to installation and after-sales service, our process ensures the best for residential and commercial handovers.

FAQ's of Manual Passenger Elevator:

Q: How is the manual passenger elevator operated and what are its key safety features?

A: The manual passenger elevator operates through single or double-speed manual doors and is equipped with a microprocessor-based control panel. Essential safety devices include overload sensors, emergency alarms, safety gear, and the option for an automatic rescue device.

Q: What materials are used in constructing the elevator and how does it ensure durability?

A: The elevator is constructed using high-quality stainless steel or mild steel for inestimable durability. Both materials are selected for their strength and resistance to wear, ensuring the elevator remains reliable for years of usage.

Q: Where can this elevator be installed and what are its main applications?

A: This elevator can be installed in residential apartments, commercial office buildings, shopping centers, and public facilities. Its customizable sizes ensure compatibility with a wide range of shaft and building requirements.

Q: What is the process for installation and what services are offered?

A: Upon supply and handover, we provide complete installation services, including machine room or machine-room-less configurations. Technical support, intercom systems (optional), and after-sales assistance are included to ensure impeccable service.

Q: When should the optional automatic rescue device be considered?

A: The automatic rescue device is especially recommended for installations in high-traffic or high-rise buildings to ensure passenger safety during power failures, offering peace of mind and uninterrupted operation.

Q: What is the benefit of the microprocessor-based control panel?

A: A microprocessor-based control panel delivers precise and reliable elevator operation, optimizing ride quality and system diagnostics for top-notch performance and minimal downtime.
