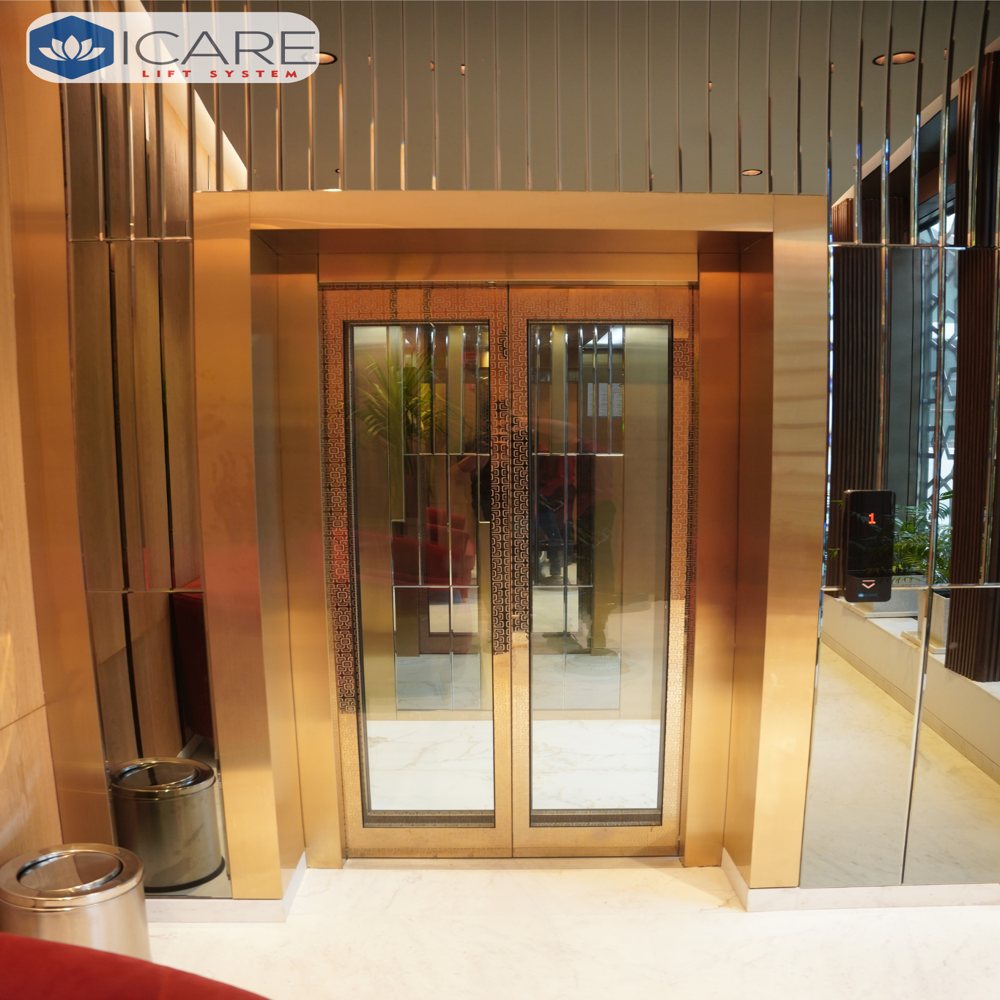

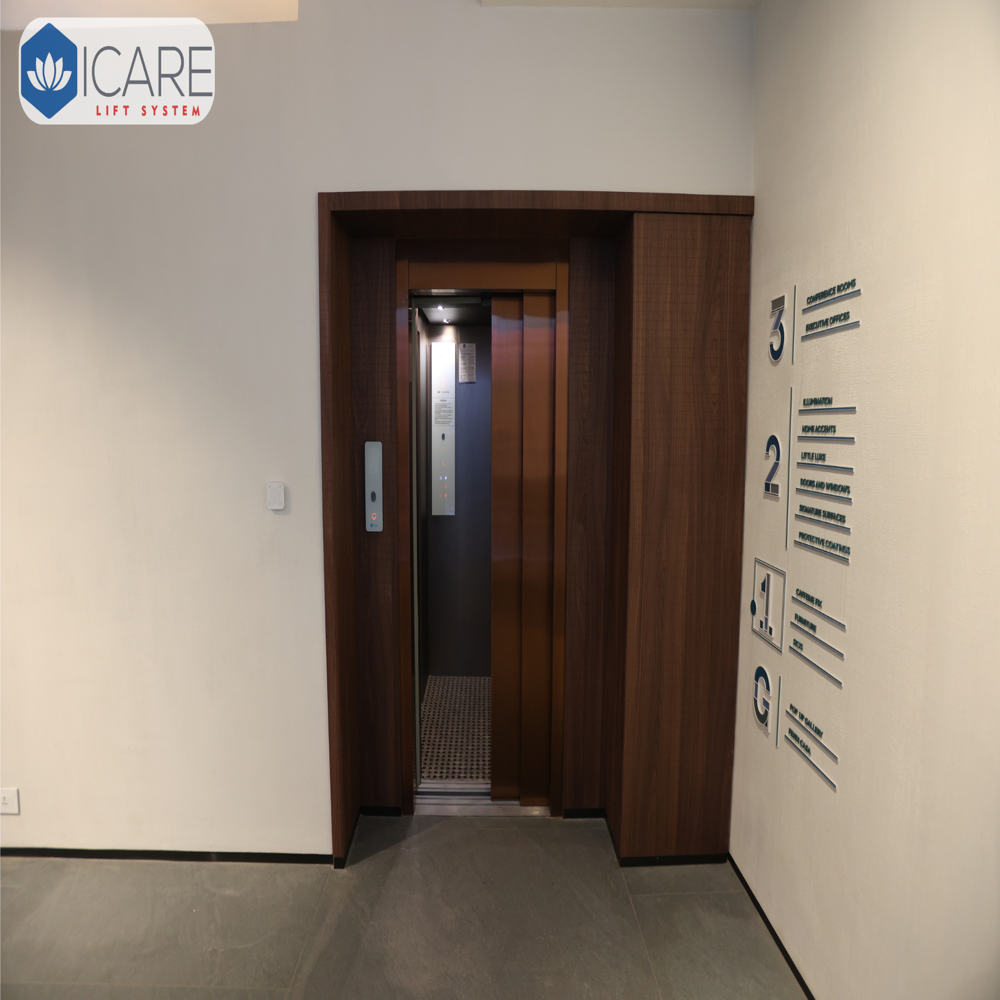

Passenger Elevator

• Capacity
• 6 - 13 persons

• Car Dimension
• 1100mm x 1400mm (varies per model)

• Control Device
• Other, Microcomputer/PLC Control

• Door Opening Size
• 800mm x 2000mm

• Drive Type
• Other, VVVF Drive

• Hoist Way Size
• 1600mm x 1500mm (varies upon capacity)

• Inclination
• 0 (Vertical)

• Load Capacity
• 450kg - 1000kg

• Machine Room Size
• 2000mm x 3000mm

• Material
• other Sheet, Stainless steel / MS Powder Coated

• Max. Lifting Height
• Up to 60 meters

• Max. Lifting Weight
• 1000 kg

• Mechanism Type
• Other, Traction / Geared / Gearless

• Noise Level
• <60 dB

• Overhead Height
• 4200 mm

• Pit Depth
• 1500 mm

• Power Supply
• Three Phase, 50/60Hz

• Safety Device
• Other, Overload protection, Emergency alarm, Safety gear, Buffer, Intercom

• Speed
• 1.0 m/s to 1.75 m/s

• Type
• Other, Automatic Passenger Elevator

• Usage
• Other, Residential / Commercial / Office

• Voltage
• 380V / 220V

• Working Temperature
• -5C to +40C

• Capacity
• 6-20 Persons

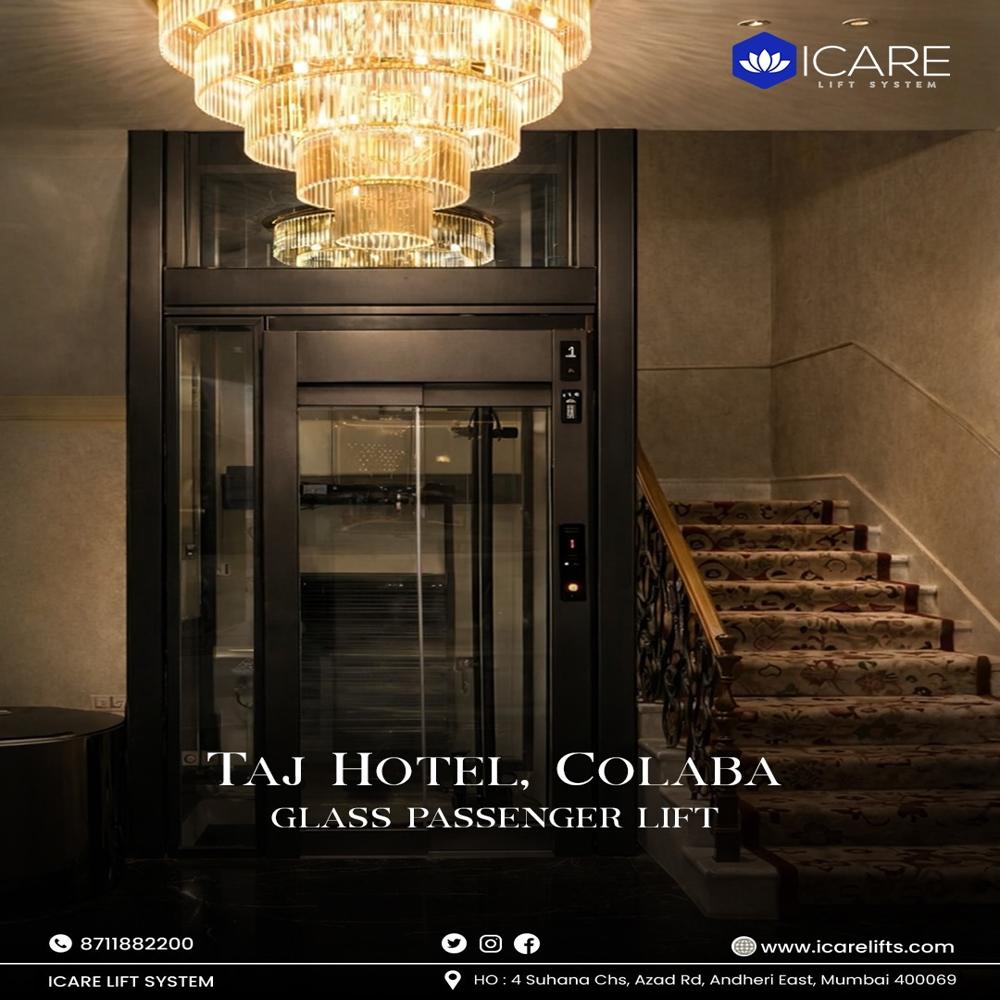

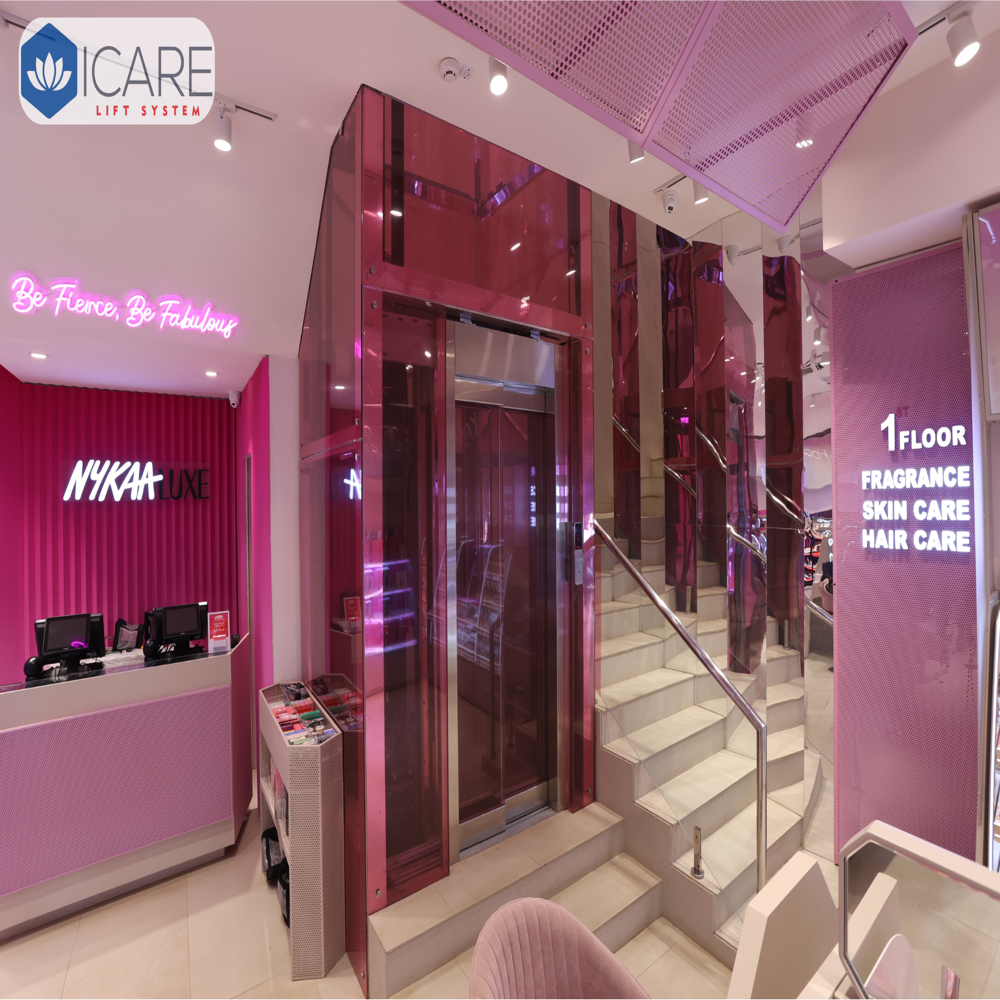

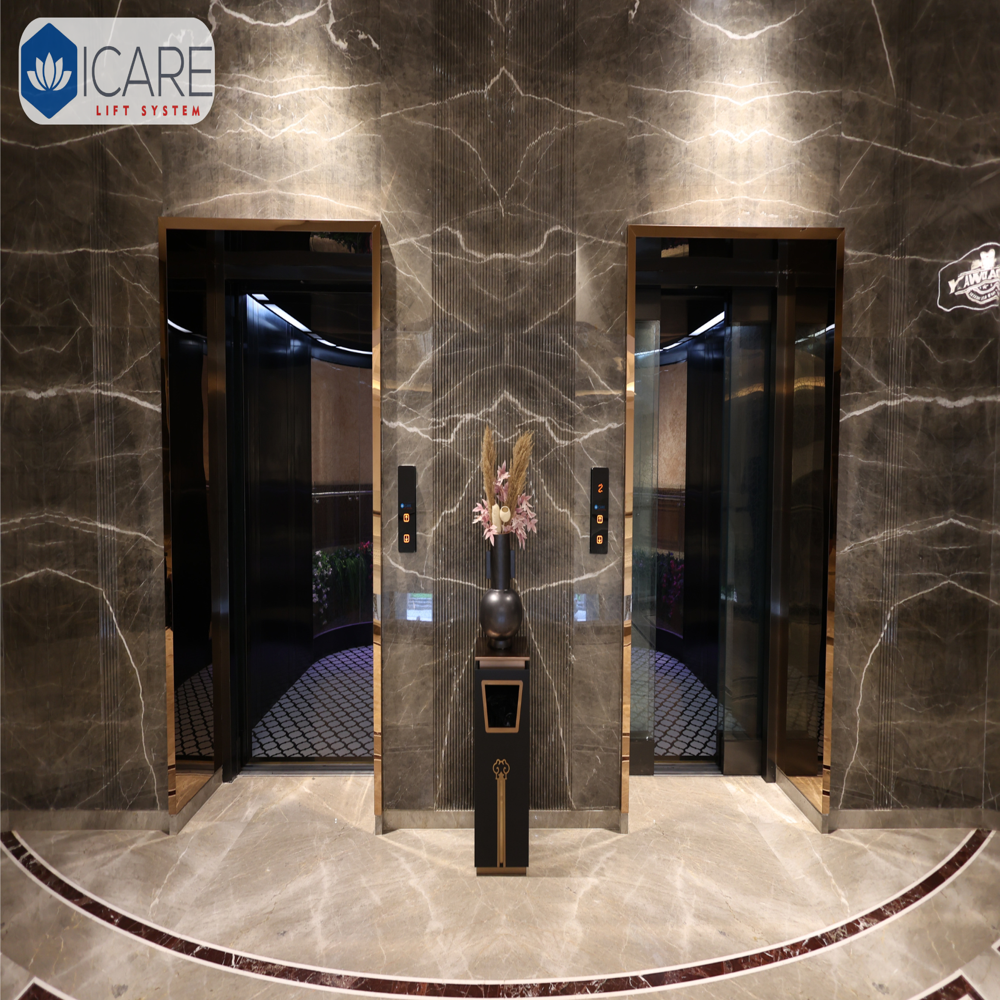

• Car Dimension
• 1100x1400 mm ~ 1600x1800 mm

• Control Device
• Other, Microcomputer Control

• Door Opening Size
• 700x2000 mm ~ 1100x2100 mm

• Drive Type
• Other, Traction Drive

• Hoist Way Size
• 1800x1650 mm ~ 2400x2150 mm

• Inclination
• 0 (Vertical)

• Load Capacity
• 450 kg - 1600 kg

• Machine Room Size
• 1850x3000 mm

• Material
• other Sheet, Stainless Steel Cabin, Laminated Glass

• Max. Lifting Height
• Up to 80 m

• Max. Lifting Weight
• 1600 kg

• Mechanism Type
• Other, Gearless / Geared

• Noise Level
• <60 dB

• Overhead Height
• 4200 mm

• Pit Depth
• 1500 mm

• Power Supply
• 3-Phase, 50/60 Hz

• Safety Device
• Other, Overload Sensor, Emergency Alarm, Safety Gear, Door Lock Device

• Speed
• 1.0 - 2.5 m/s

• Type
• Other, MR (Machine Room) / MRL (Machine Room Less)

• Usage
• Other, Commercial, Passenger Transport

• Voltage
• 220V/380V

• Working Temperature
• -15C to +40C

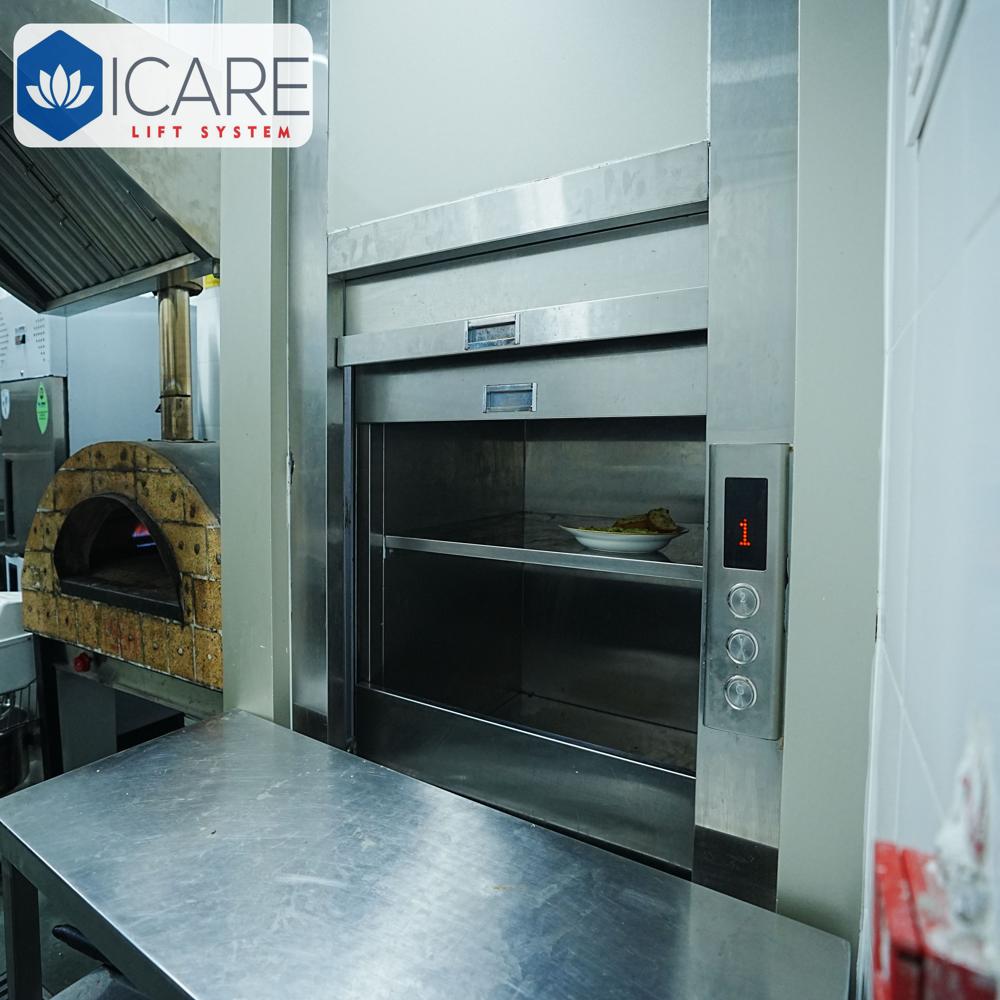

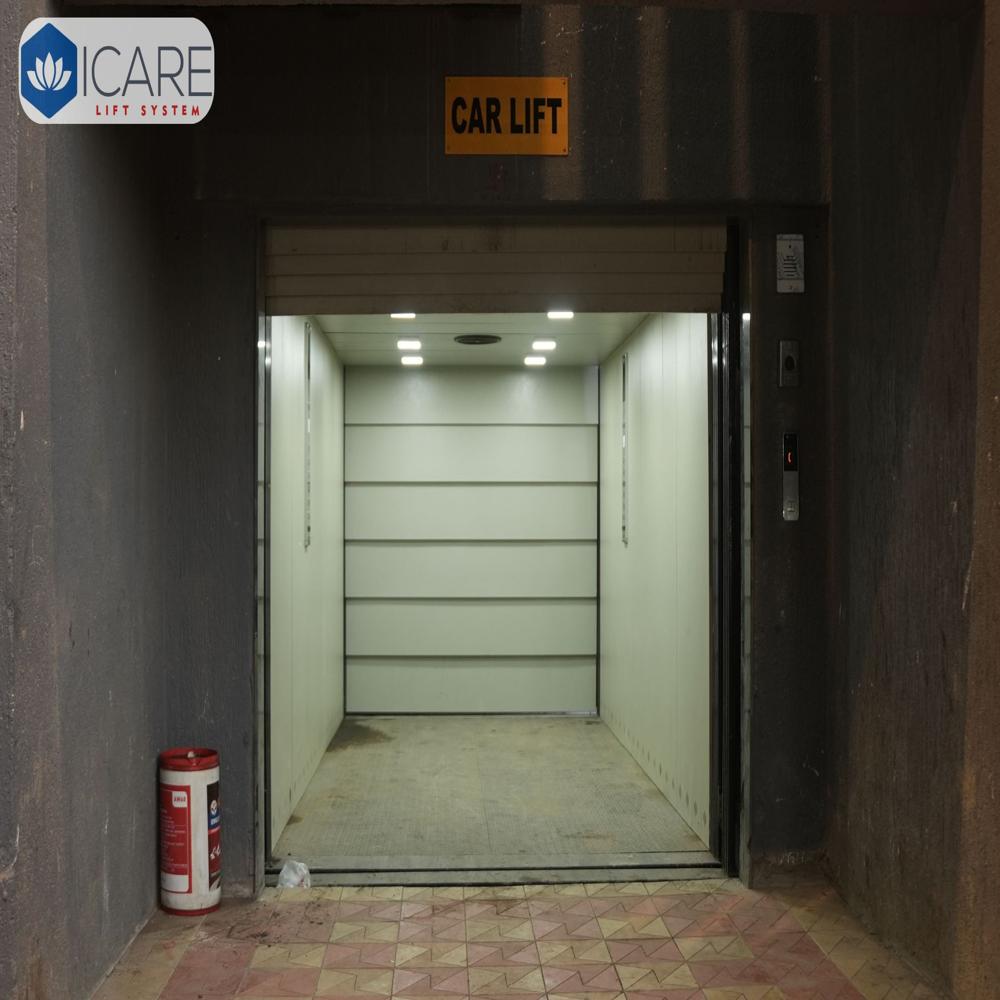

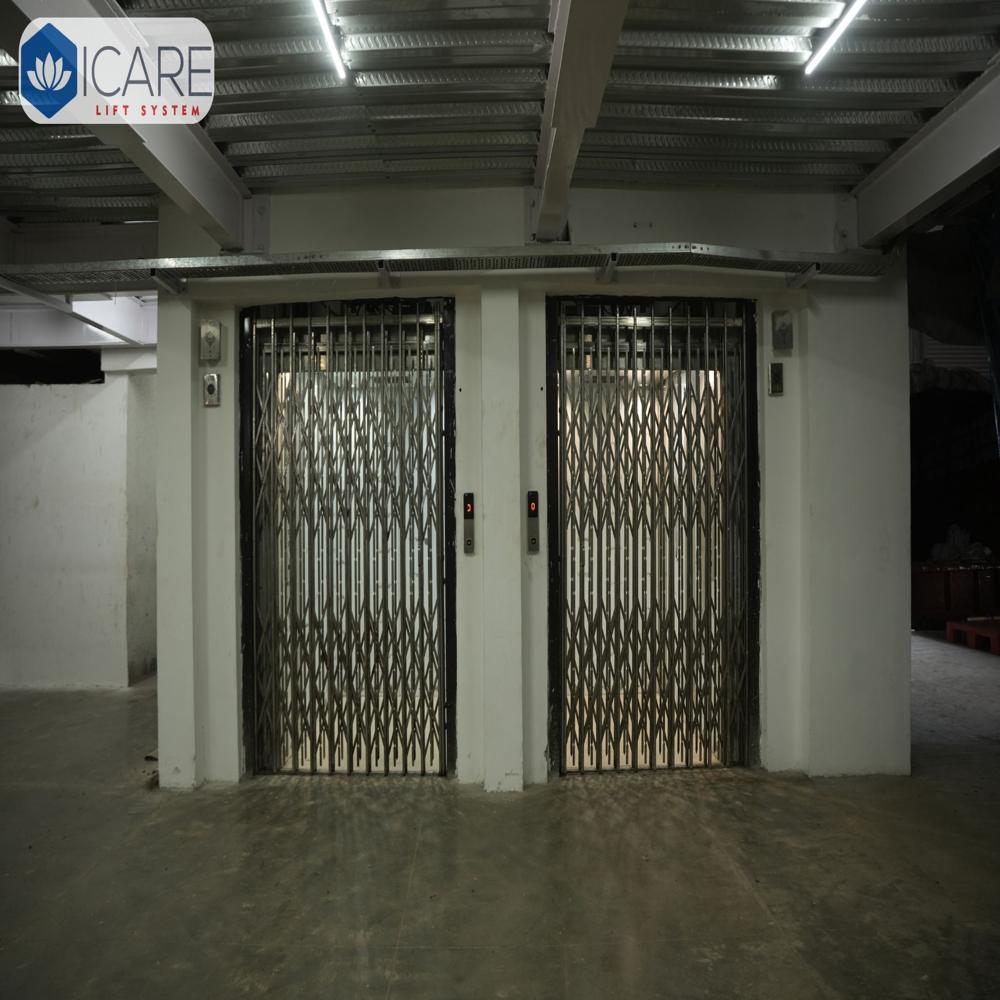

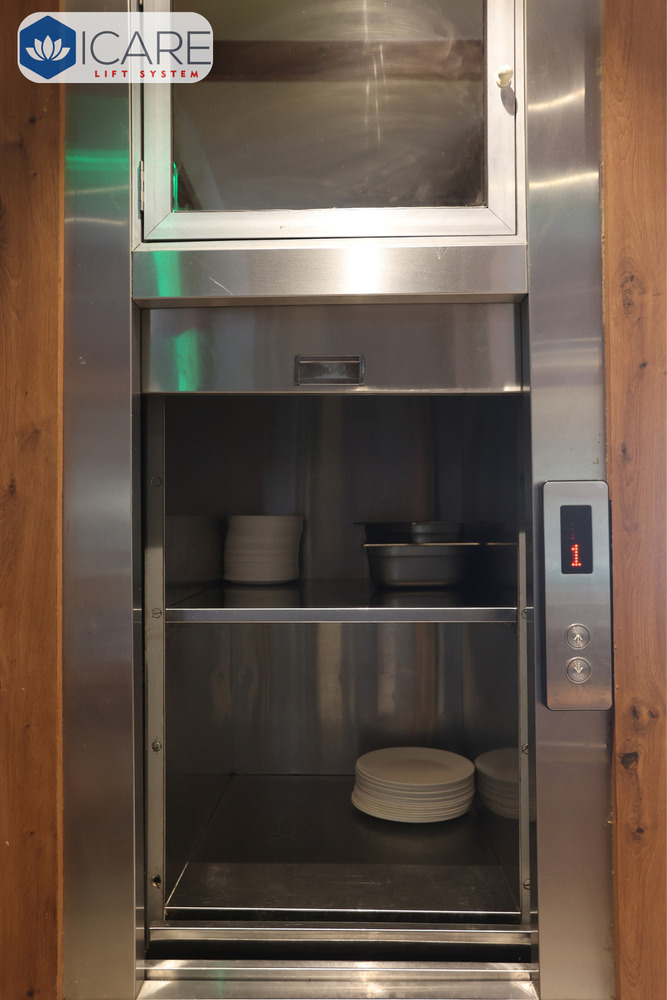

• Capacity
• 500-5000 kg Kg

• Car Dimension
• Customized (standard: 1500 mm x 2500 mm x 2100 mm)

• Door Opening Size
• Customized (standard: 1100 mm x 2100 mm)

• Drive Type
• Other

• Hoist Way Size
• Customized (standard: 2000 mm x 2600 mm)

• Inclination
• 0 - for vertical lifting

• Load Capacity
• 500-5000 kg Kilograms (kg)

• Machine Room Size
• Standard/Customized

• Material
• other Sheet

• Max. Lifting Height
• Customized (up to 30 m or more) Meter (m)

• Max. Lifting Weight
• 5000 kg Kilograms (kg)

• Mechanism Type
• Other

• Noise Level
• Less than 65 dB db

• Overhead Height
• Minimum 4500 mm Millimeter (mm)

• Pit Depth
• Minimum 1500 mm Millimeter (mm)

• Power Supply
• 3 Phase, 50/60 Hz

• Speed
• 0.25-1.0 m/s m/s

• Step Width
• N/A for Goods Elevator Meter (m)

• Voltage
• 380V / 415V Volt (v)

• Working Temperature
• -10C to +50C Celsius (oC)

• Capacity
• 2-6 Persons Kg/day

• Car Dimension
• 1000 mm x 1200 mm (customizable)

• Door Opening Size
• 700 mm - 800 mm

• Drive Type
• Other

• Hoist Way Size
• 1500 mm x 1500 mm

• Load Capacity
• 320-630 kg Kilograms (kg)

• Machine Room Size
• Optional / Small Room Required

• Material
• other Sheet

• Max. Lifting Height
• Up to 12 meters Meter (m)

• Max. Lifting Weight
• 630 kg Kilograms (kg)

• Mechanism Type
• Other

• Noise Level
• 50 dB db

• Overhead Height
• 3200 mm Min. Millimeter (mm)

• Pit Depth
• 300-400 mm Millimeter (mm)

• Power Supply
• Single Phase/Three Phase, 50/60 Hz

• Safety Device
• Safety Sensor, Overload Holding Stop

• Speed
• 0.3-0.5 m/s m/s

• Type
• Hydraulic Lift

• Voltage
• 220-240 V Volt (v)

• Working Temperature
• 0 to 40C Celsius (oC)

• Capacity
• 6 Persons (408 kg) Kg/day

• Car Dimension
• 1100 mm x 1400 mm

• Door Opening Size
• 800 mm x 2000 mm

• Drive Type
• Other

• Hoist Way Size
• 1800 mm x 1700 mm

• Load Capacity
• Up to 1000 kg Kilograms (kg)

• Machine Room Size
• Machine Room Less

• Material
• other Sheet

• Max. Lifting Height
• Up to 75 m Meter (m)

• Max. Lifting Weight
• 1000 kg Kilograms (kg)

• Mechanism Type
• Other

• Noise Level
• 65 dB db

• Overhead Height
• 4200 mm Millimeter (mm)

• Pit Depth
• 1500 mm Millimeter (mm)

• Power Supply
• 3 Phase, 50 Hz

• Safety Device
• Safety Sensor, Overload Holding Stop

• Speed
• 1.0 - 1.75 m/s m/s

• Type
• Lifts

• Voltage
• 380 V / 220 V Volt (v)

• Working Temperature
• -10C to +40C Celsius (oC)

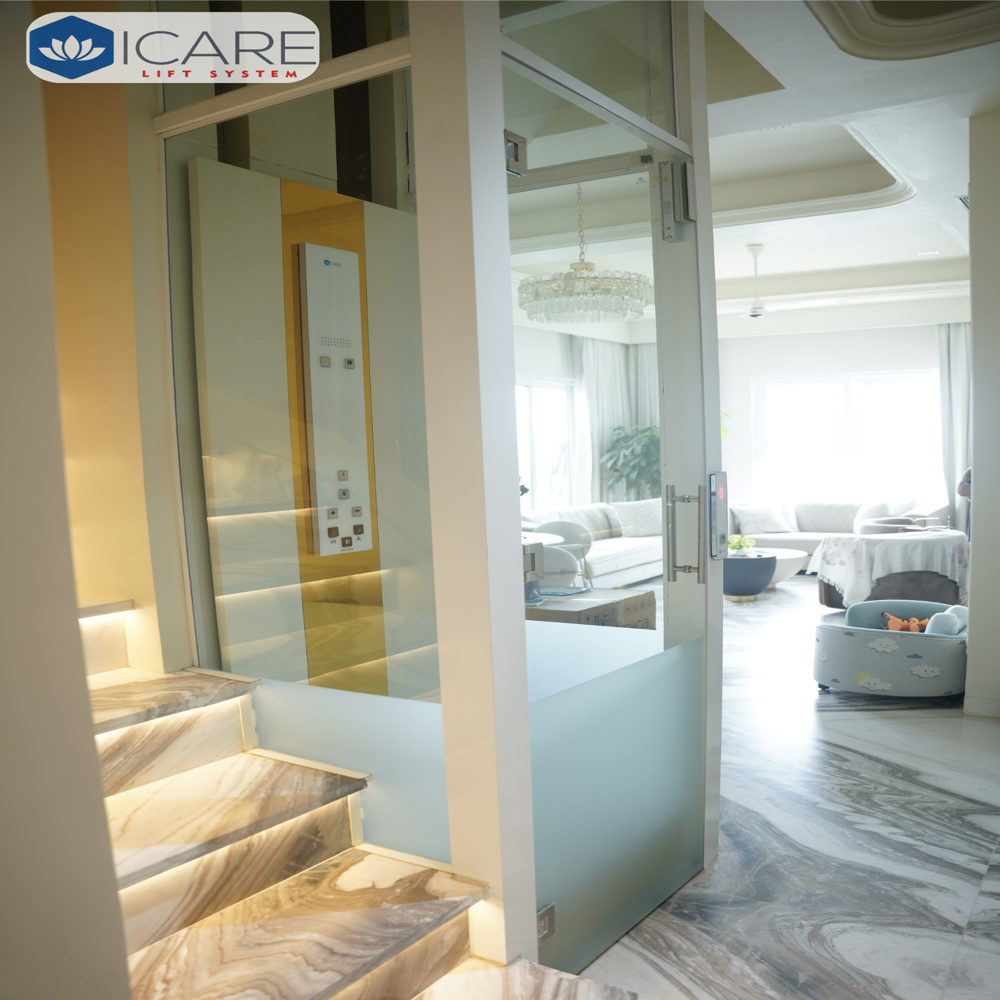

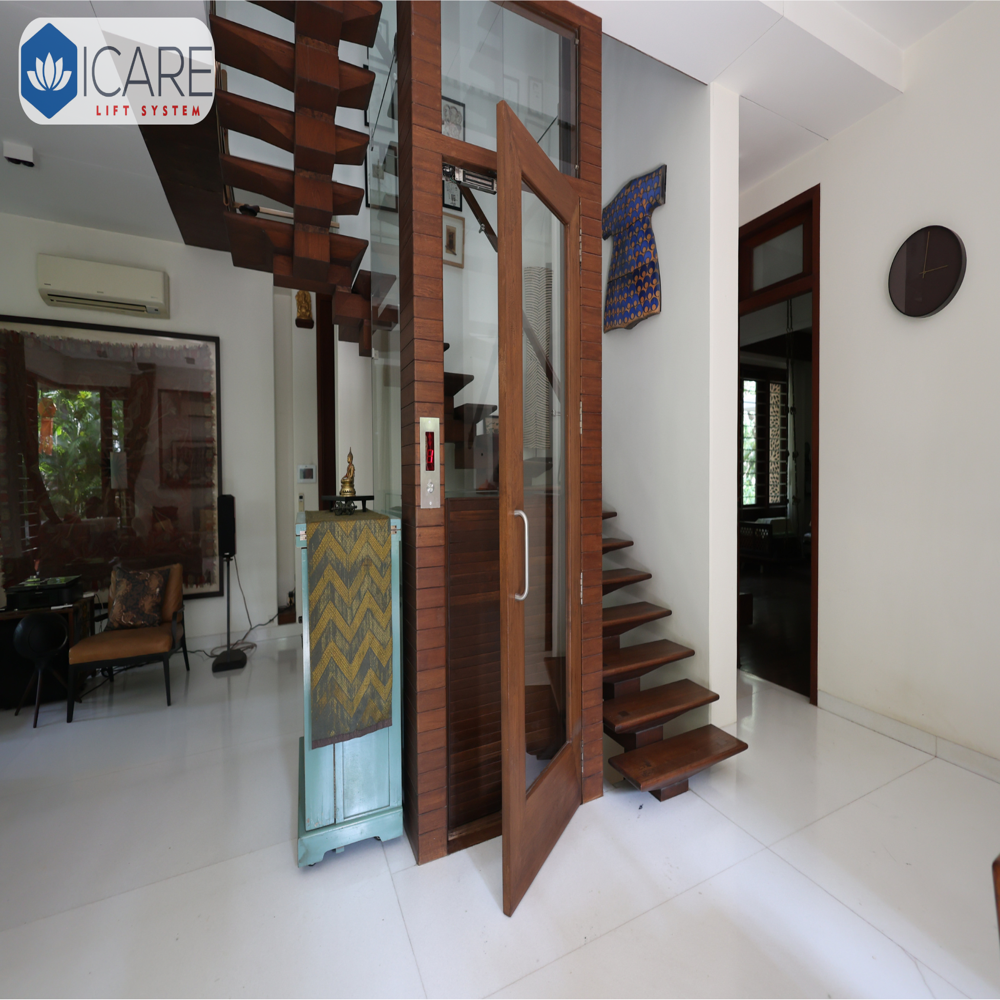

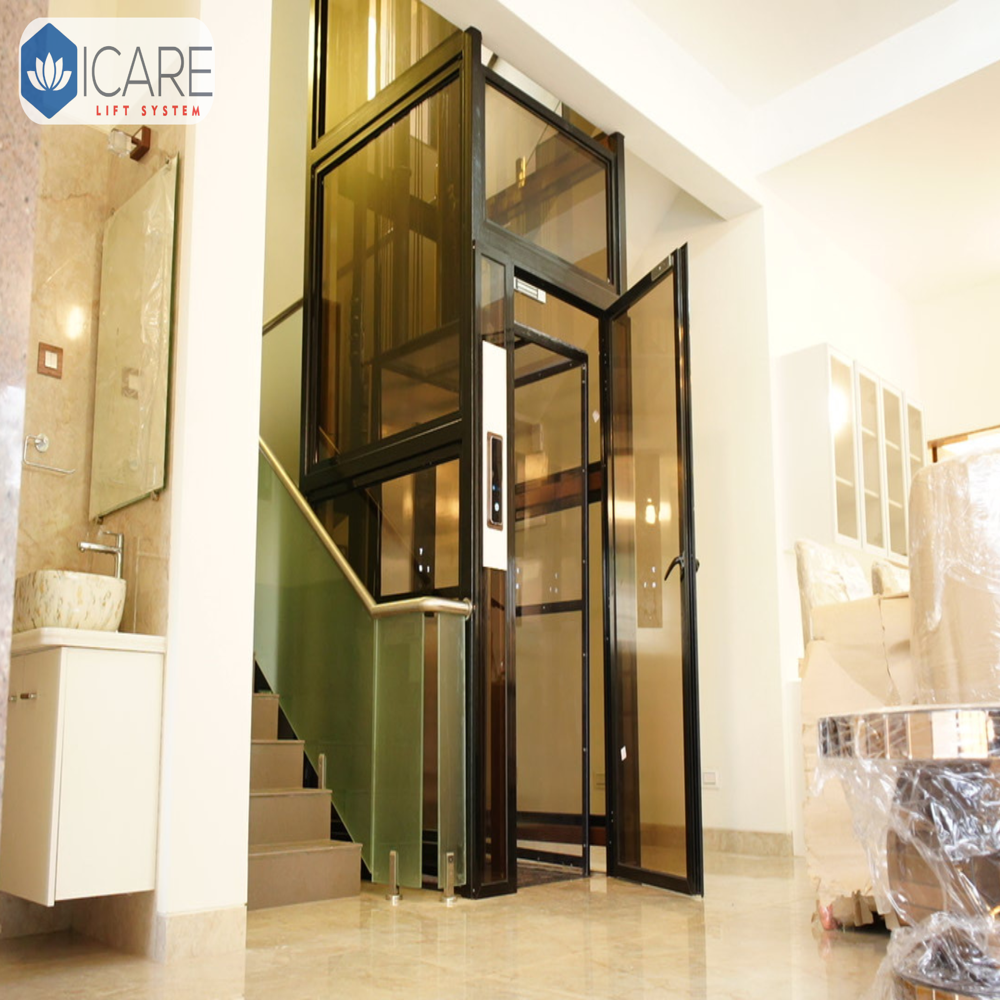

• Capacity
• 4-20 Persons

• Car Dimension
• Customizable as per shaft size

• Control Device
• Other, Microprocessor Based Control Panel

• Door Opening Size
• 700 mm to 1100 mm

• Drive Type
• Other, Geared / Gearless

• Hoist Way Size
• Customizable

• Load Capacity
• 320 to 1600 kg

• Machine Room Size
• Standard / Machine Room Less

• Material
• other Sheet, Stainless Steel / Mild Steel

• Max. Lifting Height
• Up to 60 meters

• Max. Lifting Weight
• 1600 kg

• Mechanism Type
• Other, Traction / Hydraulic

• Noise Level
• < 65 dB

• Overhead Height
• 3200 mm (minimum)

• Pit Depth
• 1500 mm (minimum)

• Power Supply
• Electric

• Safety Device
• Other, Overload Sensor, Safety Gear, Emergency Alarm

• Speed
• 0.65 m/s to 1.5 m/s

• Type
• Other, Manual Passenger Elevator

• Usage
• Other, Residential / Commercial Buildings

• Voltage
• 220V/380V

• Working Temperature
• -10C to +50C

• Capacity
• 10-20 Persons / 1000-2000 kg

• Car Dimension
• 1500 mm x 1600 mm x 2100 mm (W x D x H)

• Control Device
• Other, Microprocessor based controller

• Door Opening Size
• 1200 mm x 2100 mm

• Drive Type
• Other, Geared / Gearless

• Hoist Way Size
• 2000 mm x 2100 mm

• Load Capacity
• 1000-2000 kg

• Machine Room Size
• 2500 mm x 2200 mm

• Material
• other Sheet, Stainless Steel / MS

• Max. Lifting Height
• Up to 40 m

• Max. Lifting Weight
• 2000 kg

• Mechanism Type
• Other, Traction / Hydraulic

• Noise Level
• 55 dB

• Overhead Height
• 4200 mm

• Pit Depth
• 1600 mm

• Power Supply
• 3 Phase, 50 Hz

• Safety Device
• Other, Overload Sensor, Emergency Alarm, Door Interlock, Safety Gear

• Speed
• 0.5-1.0 m/s

• Type
• Other, Passenger Cum Goods Elevator

• Usage
• Other, Industrial / Commercial buildings

• Voltage
• 380-415 V

• Working Temperature
• -10C to 60C

• Capacity
• 1020 Kg

• Car Dimension
• Standard: 1100 x 1400 mm (customizable)

• Door Opening Size
• 800 mm / 900 mm

• Drive Type
• Other

• Hoist Way Size
• Standard: 1700 x 1800 mm (varies with model)

• Inclination
• 0 (vertical)

• Load Capacity
• 450 kg to 2000 kg Kilograms (kg)

• Machine Room Size
• 1800 x 2400 mm

• Material
• Galvanized Steel, Stainless Steel, Brass, Bronze, other Sheet, Stainless Steel, Other

• Max. Lifting Height
• Up to 80 meters Meter (m)

• Max. Lifting Weight
• 2000 kg Kilograms (kg)

• Mechanism Type
• Other

• Noise Level
• 55 dB db

• Overhead Height
• 4200 mm Millimeter (mm)

• Pit Depth
• 1500 mm Millimeter (mm)

• Power Supply
• Three-phase AC

• Safety Device
• Down Over Speed Protection Device, Safety Sensor, Emergency Lowering, Overload Holding Stop

• Speed
• 1.0 - 2.5 m/s m/s

• Step Width
• N/A (not applicable for elevators) Millimeter (mm)

• Type
• Passenger Elevators

• Usage
• Residential Elevators, For Passengers Loading, Building Elevator

• Voltage
• 220/380V, 50Hz Volt (v)

• Working Temperature
• 5C to 40C Celsius (oC)

• Capacity
• 8 to 20 Persons

• Car Dimension
• 1100 mm x 1400 mm to 1600 mm x 2100 mm

• Control Device
• Other, Microprocessor Based Control Panel

• Door Opening Size
• 700 mm to 1200 mm

• Drive Type
• Other, VVVF (Variable Voltage Variable Frequency) Drive

• Hoist Way Size
• 2100 mm x 1700 mm to 2800 mm x 2500 mm

• Load Capacity
• 630 kg to 1600 kg

• Machine Room Size
• 2000 mm x 2500 mm

• Material
• other Sheet, Stainless Steel Cabin, Powder Coated Doors

• Max. Lifting Height
• Up to 70 m

• Max. Lifting Weight
• Up to 1600 kg

• Mechanism Type
• Other, Traction

• Noise Level
• Less than 60 dB

• Overhead Height
• 4200 mm

• Pit Depth
• 1600 mm

• Power Supply
• Three Phase, 50/60Hz

• Safety Device
• Other, Overload Protection, Emergency Alarm, Auto Rescue Device

• Speed
• 1.0 to 2.5 m/s

• Type
• Other, Premium Passenger Elevator

• Usage
• Other, Residential, Commercial and Corporate Buildings

• Voltage
• 380V / 415V

• Working Temperature
• -10C to +40C

• Capacity
• 6 - 20 Persons

• Car Dimension
• Customizable (e.g., 1100 x 1400 mm, 1600 x 1500 mm, 2000 x 2000 mm)

• Control Device
• Other, Microprocessor Control

• Door Opening Size
• 800 mm - 1100 mm

• Drive Type
• Other, Gearless Traction

• Hoist Way Size
• Customizable as per capacity

• Load Capacity
• 450 - 1600 kg

• Machine Room Size
• Customized/As per standard requirement

• Material
• other Sheet, Stainless Steel (Grade 304/316)

• Max. Lifting Height
• Up to 100 meters

• Max. Lifting Weight
• 1600 kg

• Mechanism Type
• Other, Traction

• Noise Level
• 65 dB

• Overhead Height
• 3600 mm - 4200 mm

• Pit Depth
• 1500 mm - 1800 mm

• Power Supply
• 3 Phase, 50/60 Hz

• Safety Device
• Other, Overload Sensor, Emergency Stop, Automatic Rescue Device (ARD)

• Speed
• 1.0 - 2.5 m/s

• Type
• Other, Passenger Elevator

• Usage
• Other, Residential, Commercial, Hospital, Hotel

• Voltage
• 380V / 220V

• Working Temperature
• -10C to 55C
