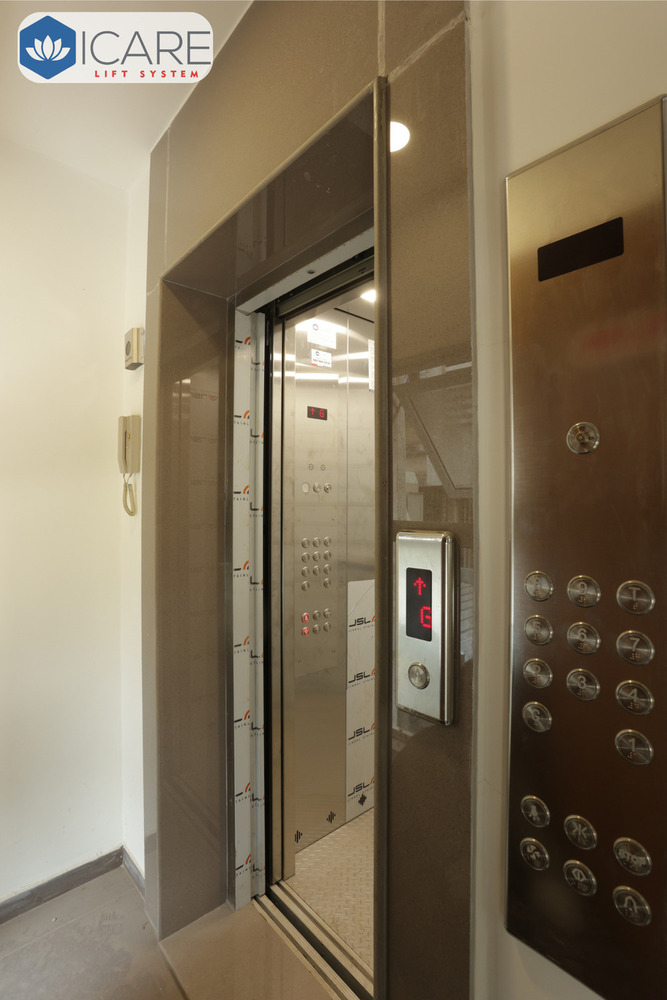

Firemen Evacuation Lift

Get a Price/Quote

MOQ : 1 Unit

Firemen Evacuation Lift Specification

Overhead Height
4500 mm

Usage
Evacuation during fire emergency

Car Dimension
1400 mm x 1600 mm

Load Capacity
1000 Kg

Type
Firemen Evacuation Lift

Machine Room Size
2200 mm x 2500 mm

Hoist Way Size
2100 mm x 1900 mm

Noise Level
< 65 dB

Pit Depth
1500 mm

Voltage
380V / 415V

Inclination
Vertical

Door Opening Size
900 mm

Material
Stainless Steel

Drive Type
VVVF Drive

Power Supply
3 Phase, 50 Hz

Speed
1.5 m/s

Max. Lifting Height
50 m

Max. Lifting Weight
1000 Kg

Mechanism Type
Traction

Working Temperature
-10C to +55C

Control Device
Microprocessor Based Control Panel

Safety Device
Overload Sensor, Emergency Alarm, Fireman Switch

Capacity
1000 Kg

Display Panel
LCD/LED Floor Indicator

Finishing
Hairline Stainless Steel / Powder Coated

Flooring
Anti-skid PVC/Granite

Emergency Power Supply
Automatic Rescue Device (ARD) / Battery Backup

Standards Conformed
NBC 2016, IS 14671

Lighting
LED Emergency Lighting

Drive Motor Power
7.5 kW

Landing Door Type
Automatic Center Opening

Communication System
Two-way Intercom / Auto-dialer

Overload Protection
Automated Cut-off

Maximum Stops
Up to 16

Alarm System
Fire/Smoke Alarm Integration

Fire Resistance
90 Minutes (Lift Landing Door and Shaft)

Customization
Available as per site requirement

Anti-smoke Device
Yes

Handrail
Provided

Enclosure Rating
IP54 (for control panel)

Firemen Evacuation Lift Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
5000 Units Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About Firemen Evacuation Lift

Experience a fresh standard of emergency preparedness with our Meritorious Firemen Evacuation Lift, expertly engineered for enlightened safety. With a sterling fire resistance rating of 90 minutes for both landing door and shaft, this lift ensures reliable evacuation under critical conditions. Benefit from advanced automatic rescue devices, a robust communication system, and anti-smoke mechanisms. Conforming to NBC 2016 and IS 14671, this solution boasts customization, top-tier finishes, and IP54-rated control panels. On sale now-pick yours to secure your building with a superior evacuation asset.

Premium Features & Versatile Applications

Our Firemen Evacuation Lift is distinguished by extra features including a microprocessor-based control panel, overload protection, and automated cut-off. Designed for plant applications in factories, commercial complexes, hospitals, and high-rise buildings, its anti-skid flooring, two-way intercom, and auto-dialer augment safe and effective evacuation. The lift's customizability ensures it adapts seamlessly to varied sites, while the robust stainless steel design makes it ideal for demanding environments.

Efficient Supply, Sample Policy & Rapid Dispatch

We proudly supply Firemen Evacuation Lifts across India, ensuring timely estimate, packing, and dispatch tailored to your needs. Sample units are available for evaluation, with a transparent policy for sample request and return. Our streamlined process guarantees expeditious delivery and seamless installation support, so you never compromise on safety during fire emergencies. Trust us to fulfill large-scale orders while maintaining consistent product quality and service excellence.

FAQ's of Firemen Evacuation Lift:

Q: How does the Firemen Evacuation Lift ensure safe evacuation during a fire emergency?

A: The lift is built with fire-resistant doors and shafts rated for 90 minutes, automated rescue device (ARD), anti-smoke systems, and two-way communication, ensuring occupants can be safely transported and kept informed during fire situations.

Q: What are the main applications and installation areas for this evacuation lift?

A: The lift is ideal for factories, commercial buildings, hospitals, and high-rise residential structures that require rapid and safe evacuation during emergencies.

Q: Where is the Firemen Evacuation Lift manufactured and supplied?

A: This product is manufactured, serviced, and supplied across India, supporting various infrastructure and safety requirements nationwide.

Q: What customization options are available for specific site requirements?

A: Customization is offered for car dimensions, finishes, communication systems, and installation configurations to perfectly match the requirements of each building or site.

Q: What is the process for requesting a sample unit or placing an order?

A: Clients can request a sample through our defined sample policy, after which we provide estimates, coordinate packing, and arrange prompt dispatch to your location.
